Codice prodotto del produttore
HF240-BNCM-BNCF-0.5
Garanzia
?
24 mesi
EAN
4752284000226

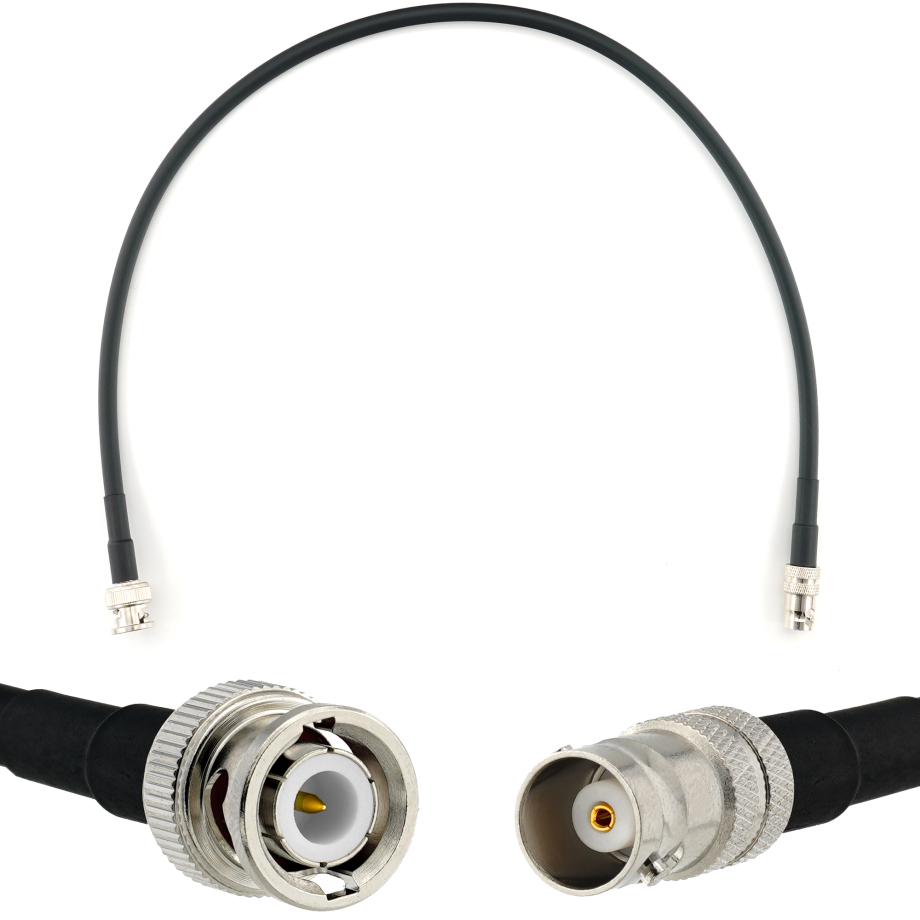

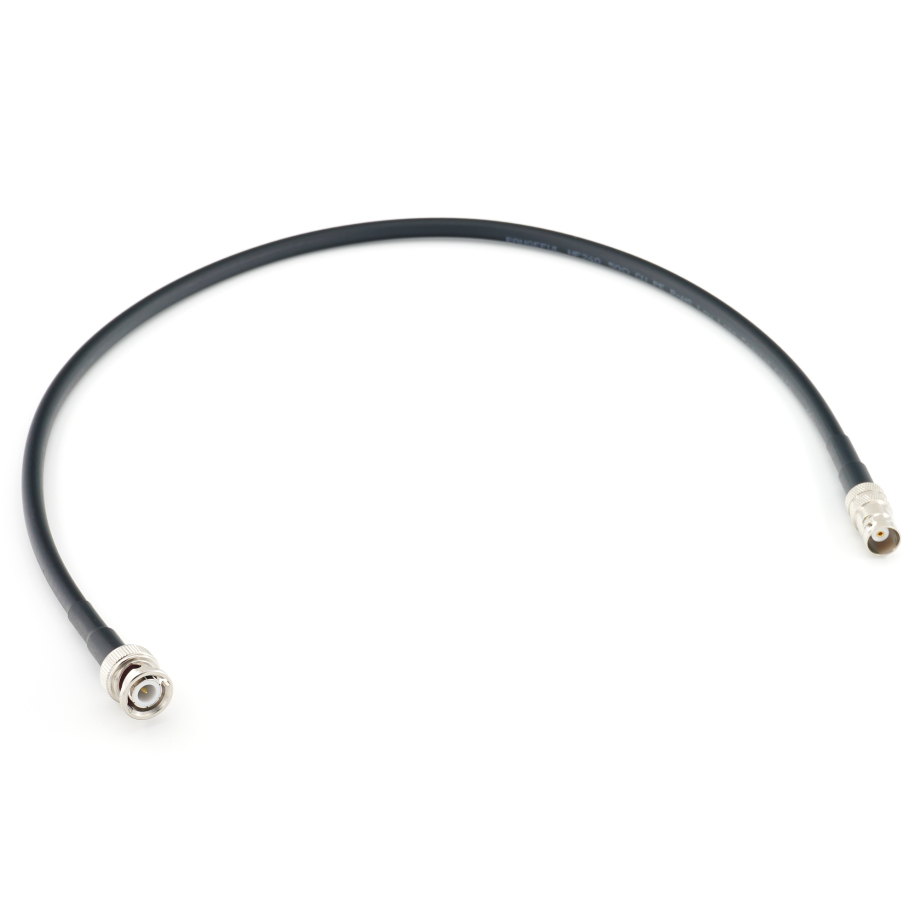

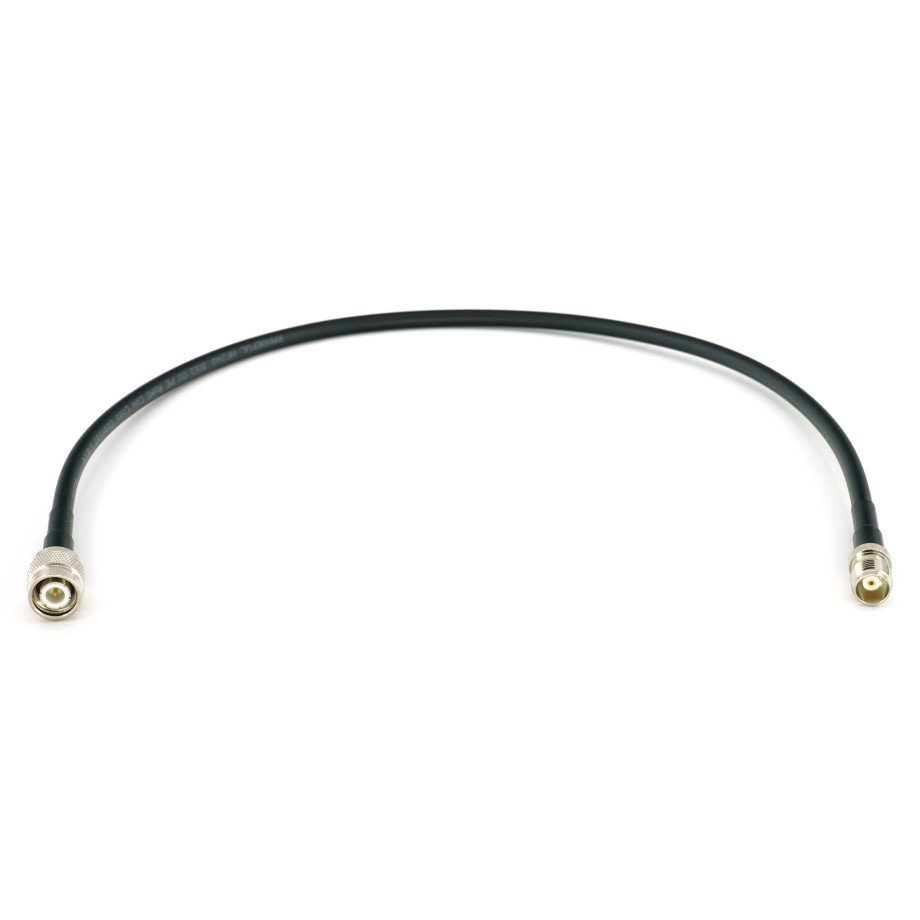

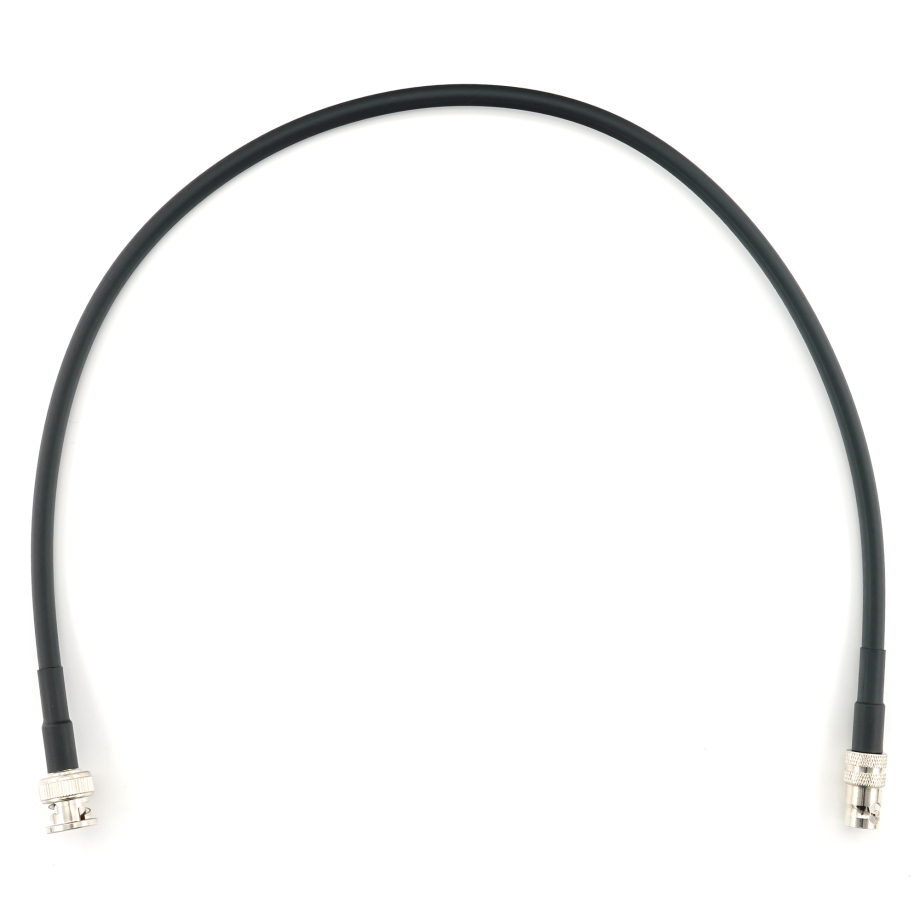

BNC maschio a BNC femmina 50cm cavo coassiale — HF240 (equivalente a LMR240)
in magazzino
?
12.24 €
12.24 €
Descrizione dettagliata
Specifiche
Cavo e connettore
Tipo di cavo
LMR240
Connettore
BNC Male - BNC Female
Lunghezza del cavo
Conduttore
Rame puro
Diametro del conduttore
Ø 1,40 mm
Dielettrico
PEG
Diametro del dielettrico
Ø 3,80 ± 0,10 mm
Schermatura
Foglio di alluminio
Dimensioni della schermatura
Ø 3,90 ± 0,10 mm
Copertura dello schermo
100 %
Treccia
Rame stagnato
Dimensioni della treccia
Ø 4,30 ± 0,10 mm
Copertura della treccia
77 %
Guaina
PVC non contaminante
Diametro della guaina
Ø 6,10 ± 0,10 mm mm
Caratteristiche esterne
Colore
Nero
Dimensioni
15 x 15 x 2 cm
Peso
0.1 kg
Temperatura di funzionamento
-30 °C a 70 °C
Ambiente
Interno, Esterno
Il pacchetto contiene
Unità
1 pz
