Codice prodotto del produttore
JCG605LM4
Garanzia
?
24 mesi
EAN
0708747435795
4G MIMO 4x4 Antenna cellulare 3.5dBi IP67, SMA Male
in magazzino
?
44.31 €
44.31 €
Descrizione dettagliata
Specifiche tecniche
Prodotti compatibili
Specifiche
Rete mobile
Generazione di reti mobili
Antenna
Progettazione dell'antenna
Tetto
Antenna mobile Gamma di frequenza e guadagno
0.698 - 0.960 (GHz) 3.5 (dBi), 1.710 - 2.690 (GHz) 3.5 (dBi)
Guadagno dell'antenna mobile
3.5 dBi
Polarizzazione
Lineare
Lunghezza del cavo
3 m
VSWR
< 3
Impedenza
50 Ω
Connettore
Connettori RF
(4) SMA Male
Caratteristiche esterne
Colore
Nero
Materiale
Plastica ABS
Codice di protezione dell'ingresso
IP67

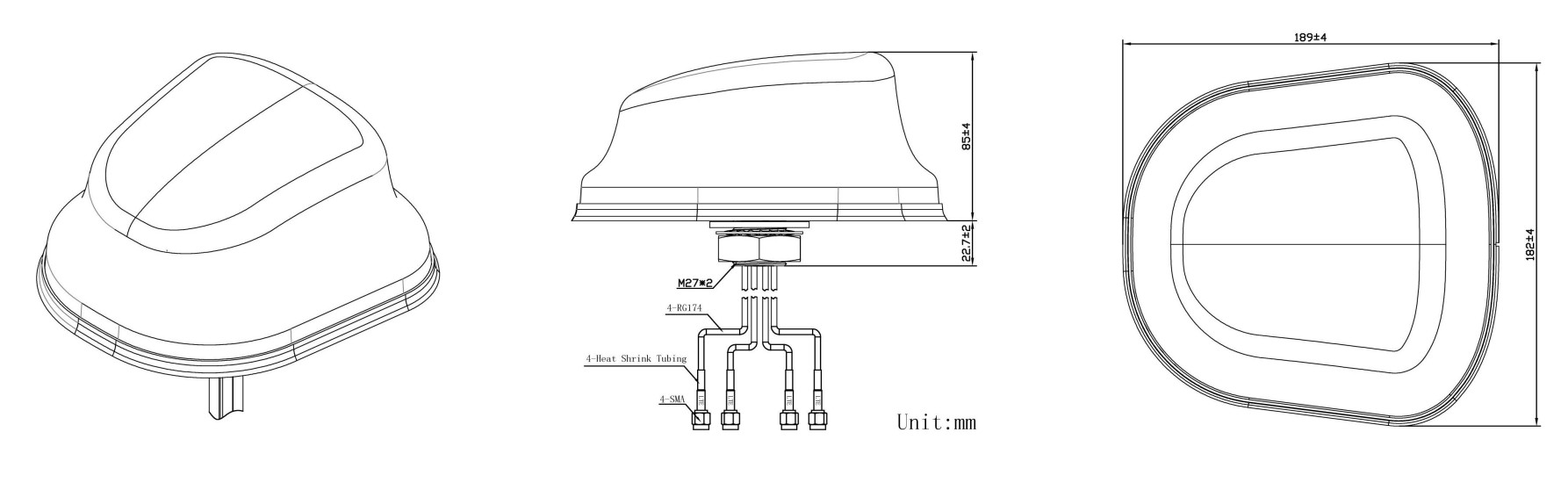

Dimensioni
185 x 180 x 90 mm
Temperatura di funzionamento
-40 °C a 85 °C
Ambiente
Esterno
Metodo di montaggio
