Codice prodotto del produttore
HF240T-SM-SF-12
Garanzia
?
24 mesi
EAN
4752284001520

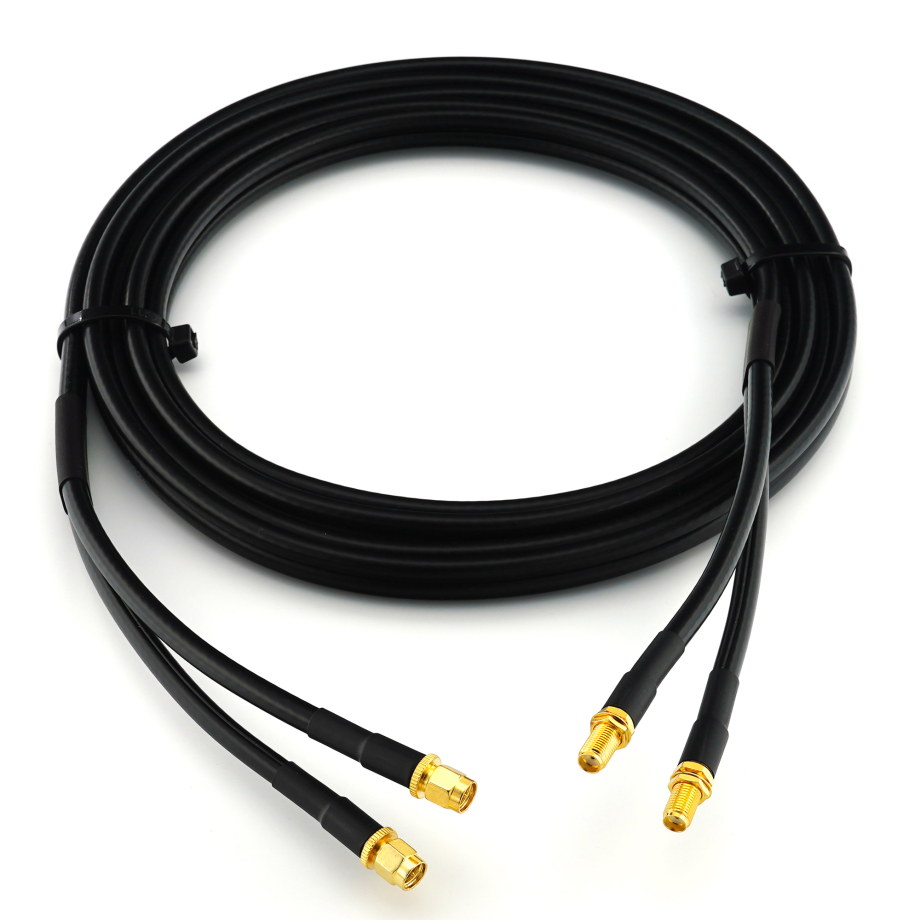

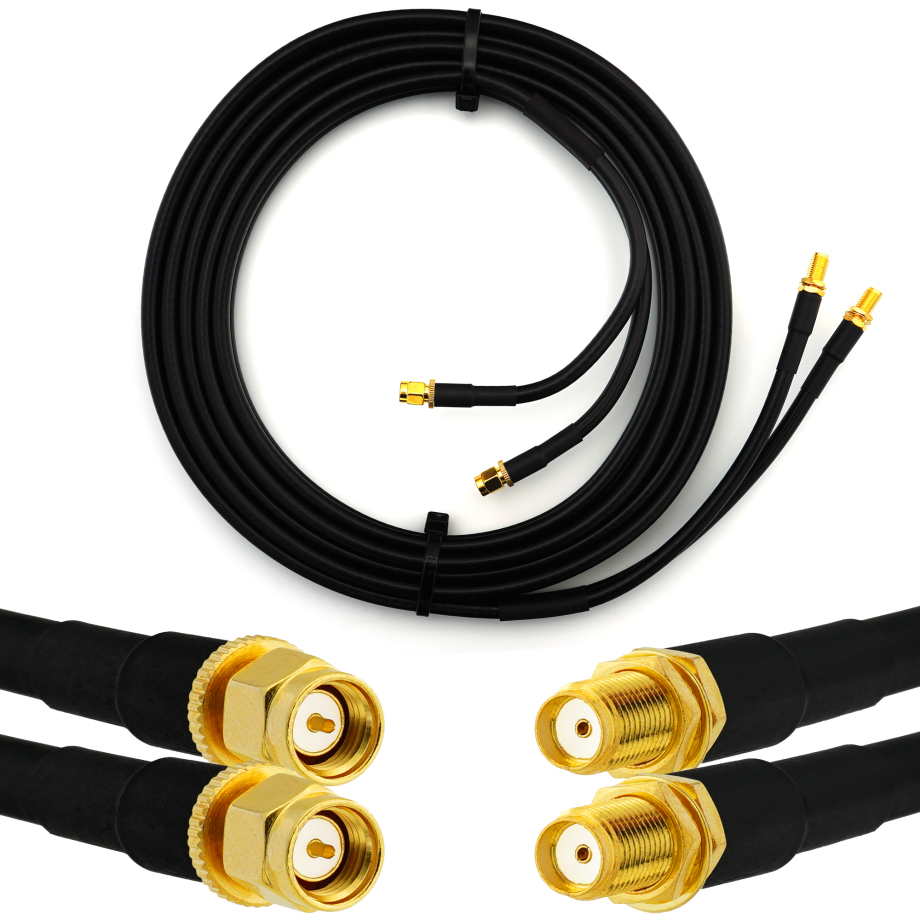

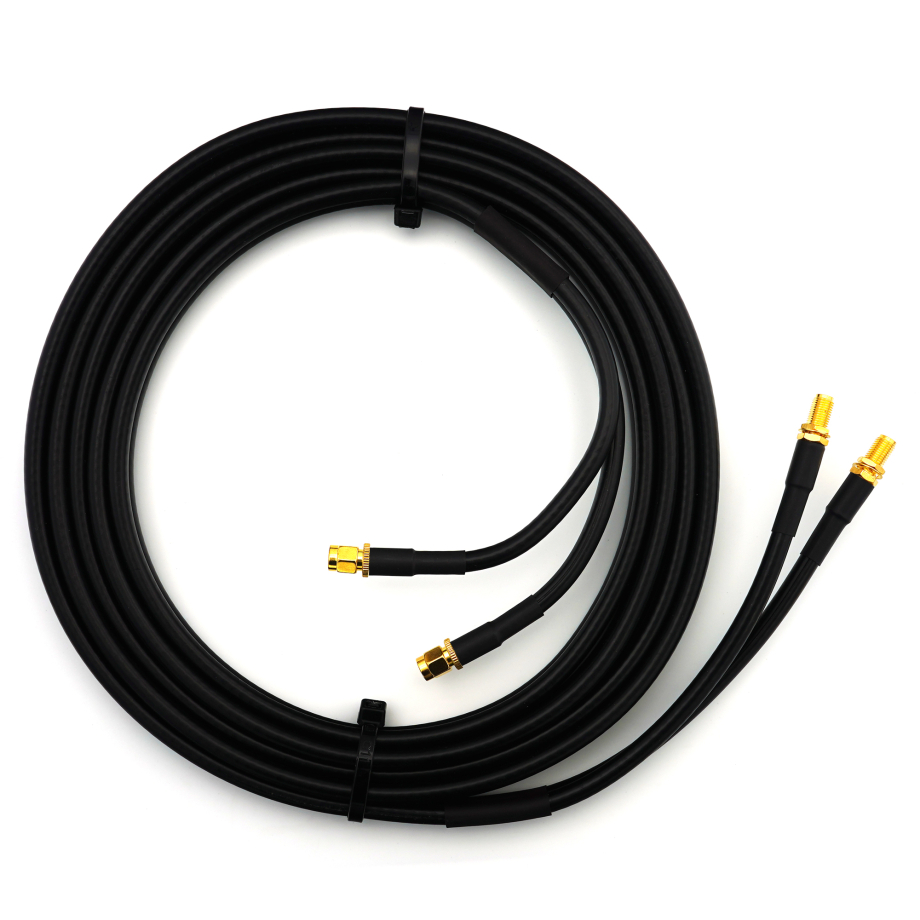

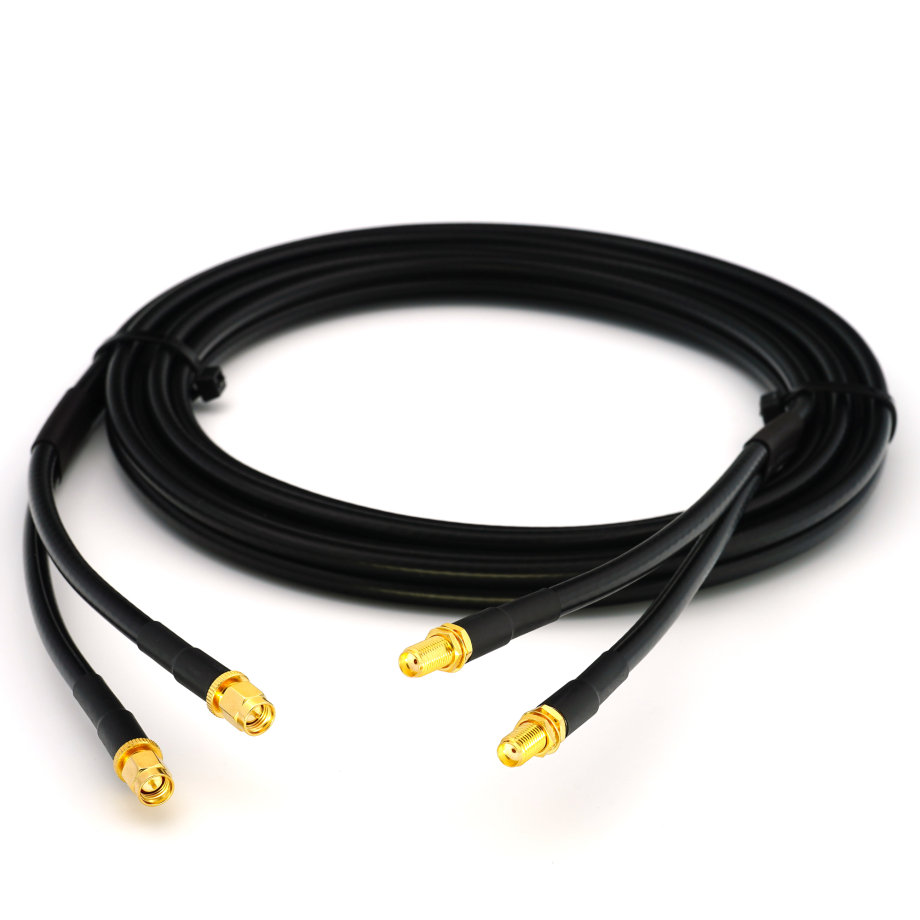

SMA maschio a SMA femmina 12m cavo coassiale doppio — HF240 (equivalente a LMR240)
in magazzino
?
52.08 €
52.08 €
Specifiche
Cavo e connettore
Connettore
(2) SMA Male - (2) SMA Female
Tipo di cavo
LMR240 Twin
Lunghezza del cavo
12 m
Conduttore
Rame puro
Diametro del conduttore
Ø 1,40 mm
Dielettrico
PEG
Diametro del dielettrico
Ø 3,80 ± 0,10 mm
Schermatura
Foglio di alluminio
Dimensioni della schermatura
Ø 3,90 ± 0,10 mm
Copertura dello schermo
100 %
Treccia
Rame stagnato
Dimensioni della treccia
Ø 4,30 ± 0,10 mm
Copertura della treccia
77 %
Guaina
PVC
Diametro della guaina
Ø 6,10 ± 0,10 mm mm
Caratteristiche esterne
Colore
Nero
Dimensioni
19 x 19 x 5 cm
Temperatura di funzionamento
-30 °C a 70 °C
Ambiente
Interno, Esterno
Il pacchetto contiene
Unità
1 pz
