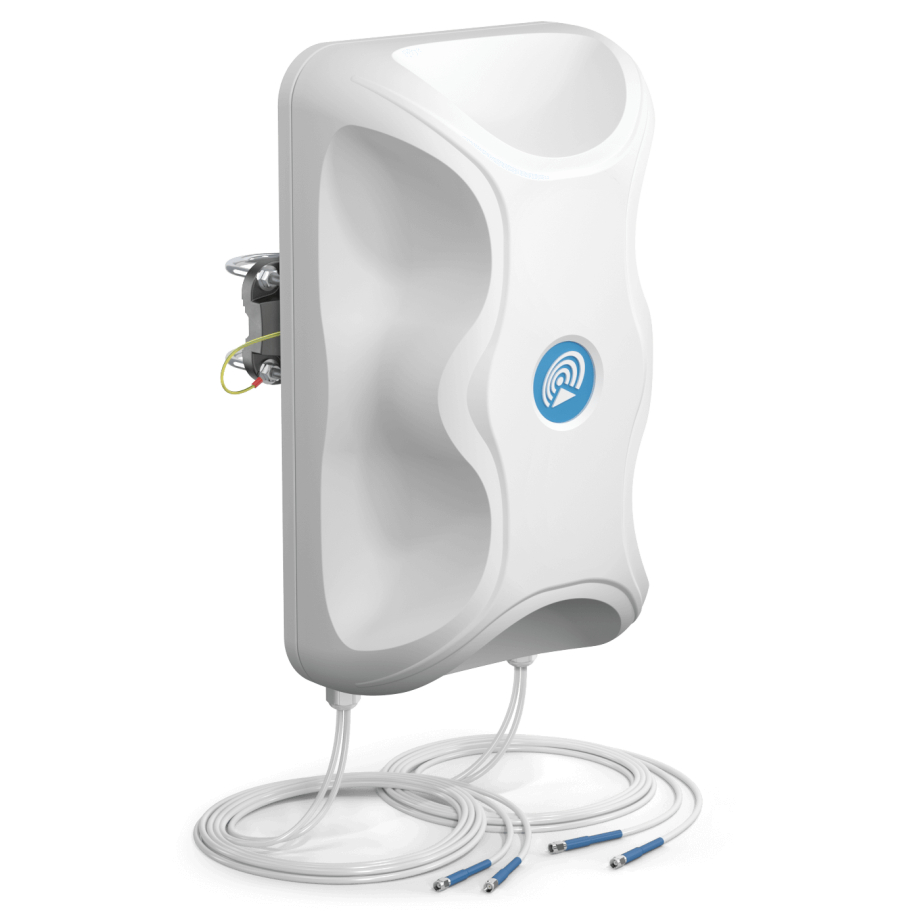

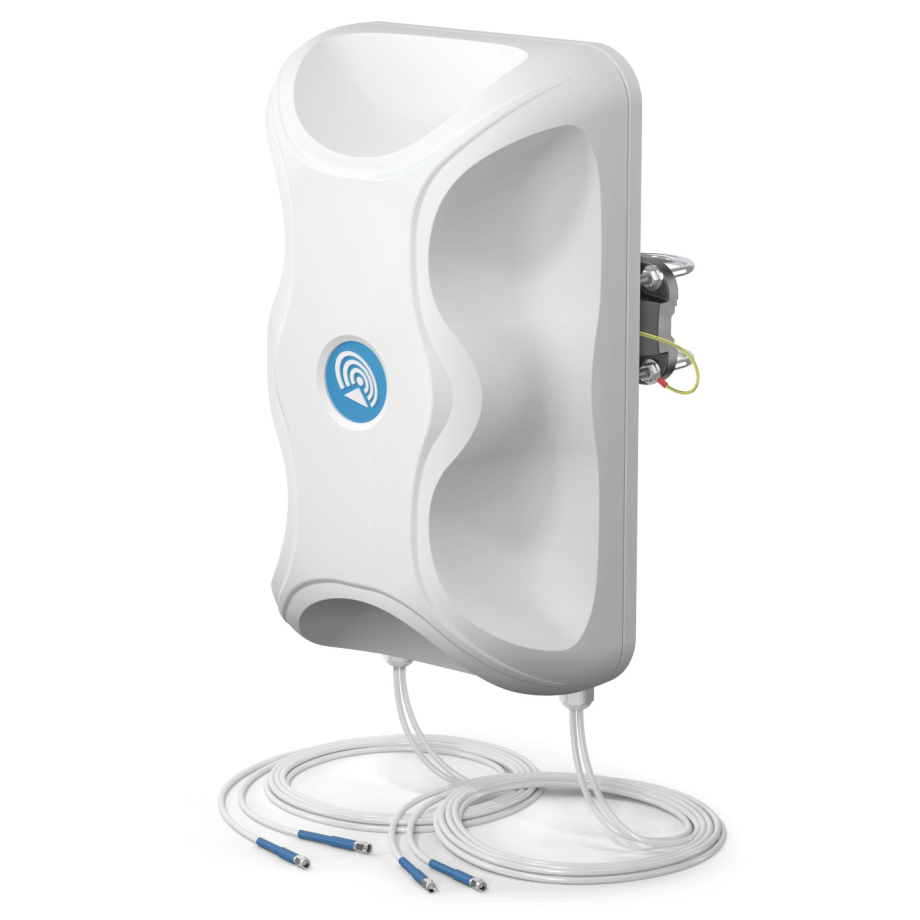

QuPanel 5G LTE Global MIMO 4x4, 5m
in magazzino
?
206.61 €
206.61 €
Descrizione dettagliata
QuPanel 5G/LTE Global MIMO 4x4 è un'antenna direzionale a banda ultralarga per esterni 5G. È progettata principalmente per i dispositivi LTE/ 5G /3G/ 2G che richiedono connessioni ad alta efficienza. L'antenna copre molte bande LTE, compresa la nuova Extended LTE Band 71 e le frequenze: 600 - 6000 MHz. La staffa di montaggio consente di installare l'antenna su palo o a parete come antenna client. È la soluzione ideale da utilizzare con tutti i modem e router 4x4 5G industriali e domestici come: Teltonika, DIGI, Mikrotik, Robustel, Cisco, ecc.
Supported LTE/4G GSM bands (617-960 MHz): 5, 6, 8, 12, 13, 14, 17, 18, 19, 20, 26, 27, 28, 29, 44, 67, 68, 71, 85, n81, n82, n83, n89.
Bande LTE/4G UMTS supportate (1710-2170 MHz): 1, 2, 3, 4, 9, 10, 25, 33, 34, 35, 36, 37, 39, 59, 62, n80, n84, n86, n95.
Bande LTE/4G WCS DARS supportate (2300-2400 MHz): 30, 40.
Bande LTE/4G supportate (2400-2700 MHz): 7, 38, 41, 53, 69, n90.
Bande LTE/5G supportate (3300-3800 MHz): 22, 42, 43, 48, 49, 52, n78.
Specifiche tecniche
Specifiche
Antenna
Progettazione dell'antenna
Pannello
Antenna mobile Gamma di frequenza e guadagno
0.617 - 0.96 (GHz) 6 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 4.6 (GHz) 7 (dBi), 4.7 - 6.0 (GHz) 5.5 (dBi)
Guadagno dell'antenna mobile
6 dBi, 7 dBi, 7 dBi, 5.5 dBi
Larghezza del fascio
80 °
Lunghezza del cavo
5 m
VSWR
< 3
Impedenza
50 Ω
Connettore
Connettori RF
(4) SMA Male
Caratteristiche esterne
Materiale
Alluminio, Plastica ABS, Vetroresina, Politetrafluoroetilene
Codice di protezione dell'ingresso
IP67
Dimensioni
486 x 292 x 106 mm
Peso
2.8 kg
Temperatura di funzionamento
-40 °C a 80 °C
Ambiente
Esterno
Metodo di montaggio
Supporto a parete, Supporto del palo
