CarrelloCarrello

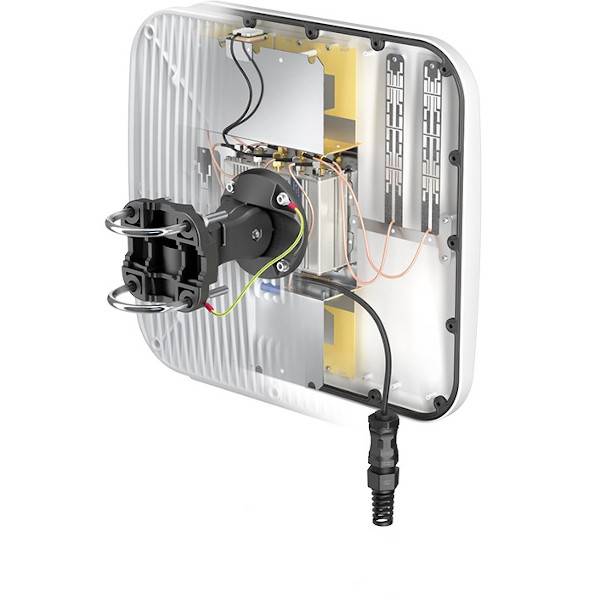

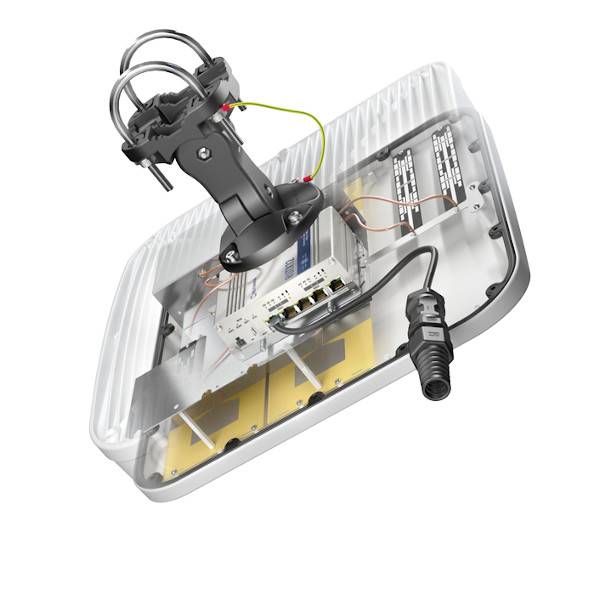

QuMax per RUTX12/X14

in magazzino
?
156.54
in magazzino
?
156.54

Marchio

Codice prodotto del produttore

AX12M

Garanzia

?
24 mesi

EAN

5907772035443

Categoria

Specifiche

Antenna

Progettazione dell'antenna

Pannello
Antenna wireless Gamma di frequenza e guadagno

2.40 - 2.50 (GHz) 6 (dBi), 4.70 - 6.00 (GHz) 7 (dBi)
Antenna mobile Gamma di frequenza e guadagno

0.694 - 0.960 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.2 - 2.7 (GHz) 6 (dBi)
Guadagno dell'antenna mobile

4 dBi, 5 dBi, 6 dBi
Larghezza del fascio

90 ° Verticale, 90 ° Orizzontale
Polarizzazione

Verticale
VSWR

< 2
Impedenza

50 Ω

Caratteristiche esterne

Colore

Bianco
Materiale

Alluminio, Plastica ABS, Vetroresina, Politetrafluoroetilene
Codice di protezione dell'ingresso

IP67
Dimensioni

392 x 392 x 99 mm
Peso

3.7 kg
Temperatura di funzionamento

-40 °C a 75 °C
Ambiente

Esterno
Metodo di montaggio

Recensioni e valutazioni

4
/ 5
1 recensione
1 recensione
Piotr Steininger,5/12/2023
This is definitely a quality product. The Plastic isn't cheap, and has no leftover edges from the injection molding process. It has all the antennas that RUTX12/RUTX14 needs. However the space for the router is very tight and some of the attachments cover up ports on either side. i was not able to power the router via PoE. The provided pass-through has some problems accepting a patch cable. So it must be hooked up with an installation cable (cat7) and crimped after part of the gland is slipped onto the cable. There was notable gain in the signal strength, as well as quality and SINR. However, this did not translate to a significant gain in DL or UL speeds. I tested it against the included stubbies and 4 directional antennas, with rather long cables (which result in some signal loss). The directional antennas outperformed this one in upload speed, which is the most critical component for me. I think that in a less rural area, without forrest all around, this product would definitely be very useful.
Verificata, raccolta da GETIC SIA
